Product Lineup

Field-Proven
Precision Inspection

From electronic component counting to threat detection — one transmission technology serving two distinct missions. Each system is delivered with dedicated console software.

[ 01 ]

EasyCounter

SMD Reel Counter · Fully-Shielded

Korea's first fully-shielded SMD reel counter. Vision AI performs non-destructive precision counting of chips within reel tape without opening the packaging. Exported to Japan and the United States, its quality is certified both domestically and internationally.

  • Up to four simultaneous reel inspections for maximum throughput
  • Proprietary vision AI delivers counting accuracy of 99.9% or greater
  • High-speed counting completed within approximately 10 seconds per reel
  • Fully-shielded — no radiation safety officer designation or user training required
  • Supports preliminary inspection of PCB 2D, BGA Ball, Lead Short, and assembled products
  • Component comparison function enables counterfeit part detection
  • Dedicated console software · MES integration (optional)
Specifications
Inspection Method
X-ray transmission + vision AI counting
Simultaneous Inspection
Up to 4 reels
Scan Speed
Approx. 10 sec / reel
Counting Accuracy
99.9% or greater
Resolution
140 µm
X-Ray Specification
45 kVp / 20 mA
Compatible Components
SMD · PCB 2D · BGA Ball · Lead Short · Assemblies
Shielding Grade
Fully-shielded (zero external leakage)
Operating Conditions
No training or registration required
Interface
Dedicated console SW / MES (optional)
Dimensions
510 × 630 × 1,160 mm
Weight
120 kg

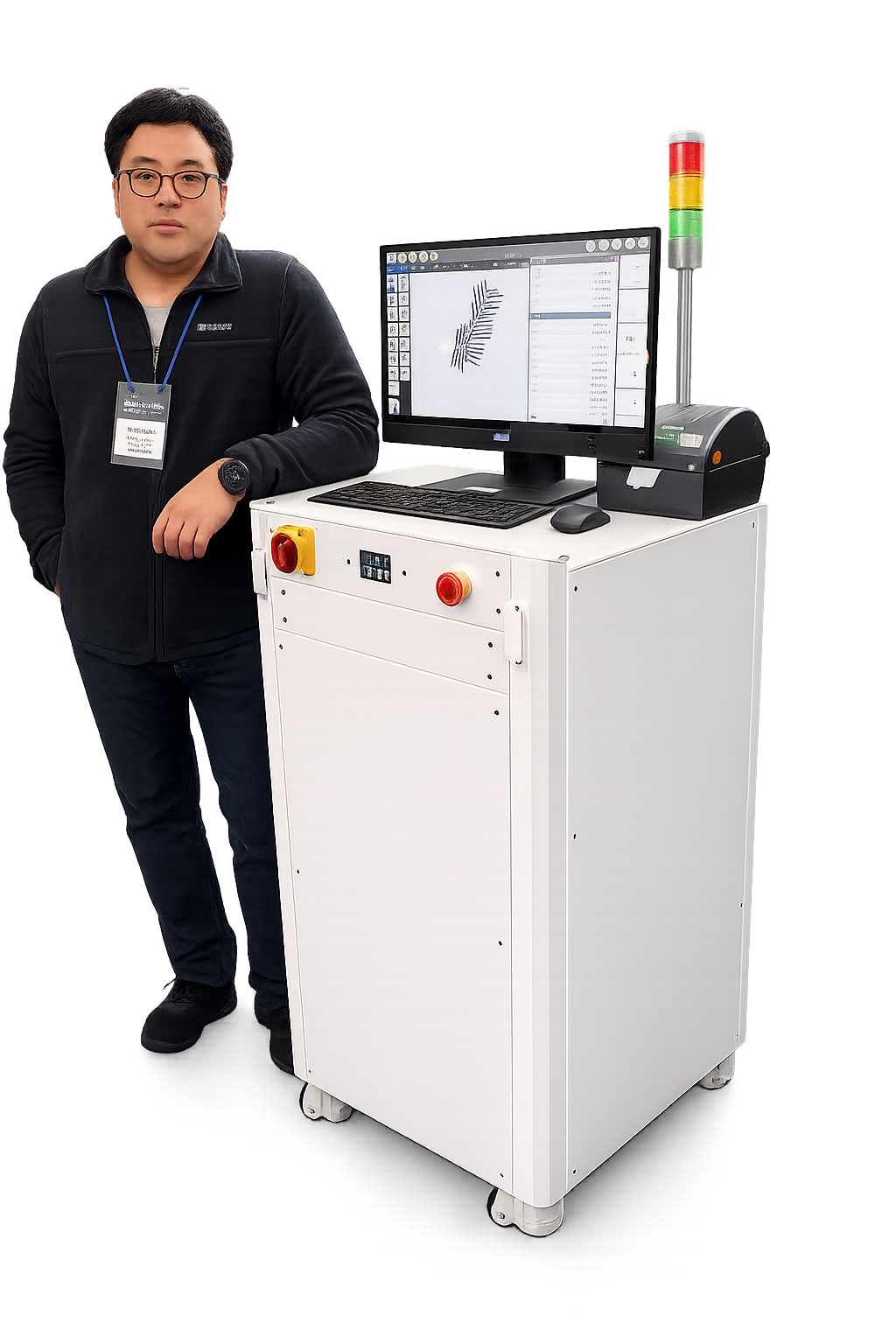

EASYCOUNTER · UNITEasyCounter reel counter unit
Console Software

From Exposure to MES,
on One Screen

Every EasyCounter ships with its dedicated console software. Acquisition, counting, inspection records, label printing and MES reporting are handled in a single application — no separate viewer, no spreadsheet in between.

COUNTING RESULT EasyCounter console: 6,256 components detected on a reel, with the inference badge showing the compute device and elapsed time
AI DETECTION · ON / OFF The same reel with detection markings on and off — 9,089 components counted
Detection markings on and off, on the same reel. What the console reads is visible at a glance.
  • Excellent counting accuracy, verified against field datasets — results are used as they are, without a manual recount
  • Runs on a wide range of hardware platforms — the console automatically selects the accelerator present on the machine (GPU, NPU), from a tablet to a workstation, with no separate toolkit or driver package to install
  • Network (Ethernet) connection option — the console does not have to stay beside the machine. Run the same software from a wireless tablet on the same network and carry out exposure, interpretation and label printing exactly as at the console. Verified in the field on a Surface Pro
  • Barcode / QR scanning registers part numbers automatically and binds them to each reel in scan order
  • AI count and final quantity are stored separately — an operator's correction never overwrites the original reading, and can be reverted in one action
  • Report a counting error in one click — when a result does not match reality, the operator reports that inspection from the viewer. The image and detection result are sent together and enter the training queue automatically; the improved detection model then reaches the machine through a remote update. Accuracy keeps improving with use, with no engineer visit required
  • Job-based worklist with search by customer, part name and period · export to Excel (CSV) · BOM list printing
  • Built-in label designer with ZPL label printer support — one label per reel, printed automatically the moment counting finishes
  • MES reporting over REST, socket, result file, or industry-standard OPC UA
  • X-ray viewer with zoom, rotate, flip, length and angle measurement, brightness/contrast control, and detection-marking toggle
  • Built for the shop floor — touch operation with pinch zoom and an on-screen keyboard, automatic portrait layout, Stream Deck and function-key control, four display languages, PIN sign-in with auto screen lock. ARM tablets run the same installer — no separate build
  • Automatic backup, retention policy and disk cleanup · application and detection model updated remotely and independently
Specifications
Version
EasyCounter Console 2.0 (included)
Operating System
Windows 10 / 11 (64-bit) · ARM tablets on the same installer
Machine Link
USB · Ethernet (TCP) — supports untethered tablet operation
Compute Device
GPU · NPU auto-selected — no toolkit install
Host Integration
MES — REST · Socket · Result file · OPC UA
Label Printer
ZPL (Zebra series)
Reporting
Excel (CSV) export · BOM list printing
Display Languages
Korean · English · Japanese · Chinese
Access Control
PIN sign-in · role-based accounts · auto screen lock
Data Management
Auto backup · retention policy · disk auto-cleanup
Error Reporting
One click in the viewer → auto-queued for training → model delivered remotely
Updates
Remote — application and detection model separately
[ 02 ]

BERAX

Ultra-High-Resolution Portable CR · NDT / EOD

There are things the eye cannot follow — sealed inside metal, buried beneath surface, hidden in the silence of structure. BERAX was made to go there. Its name is a vow: BERA, to draw forth, and X, the unknown — to bring out what remains unknown. Carried into the field on a single charge, it reads the interior of the world in 16-bit grayscale — 60 seconds, and nothing is concealed anymore.

  • 16-bit grayscale · up to 50 µm ultra-high-resolution CR
  • Integrated battery — 4 hours of autonomous field operation without external power
  • Each scan completed within 60 seconds
  • Onboard OLED status display readable even while wearing full protective equipment
  • A single system covering industrial NDT through to EOD threat interpretation
Specifications
Imaging Method
CR Ultra-High-Resolution
Resolution (Standard)
Up to 50 µm
Imaging Area
14 × 17 in (approx. 356 × 432 mm)
Scan Speed
Within 60 sec / image
Bit Depth
16-bit
Display
OLED status display
Power Supply
DC 24V adapter
Battery
Integrated / approx. 4 hours continuous per pack
Communication Interface
Wired Ethernet (RJ-45)
Dimensions
270 × 270 × 462 mm
Weight
17 kg
Application
Industrial NDT / EOD threat interpretation

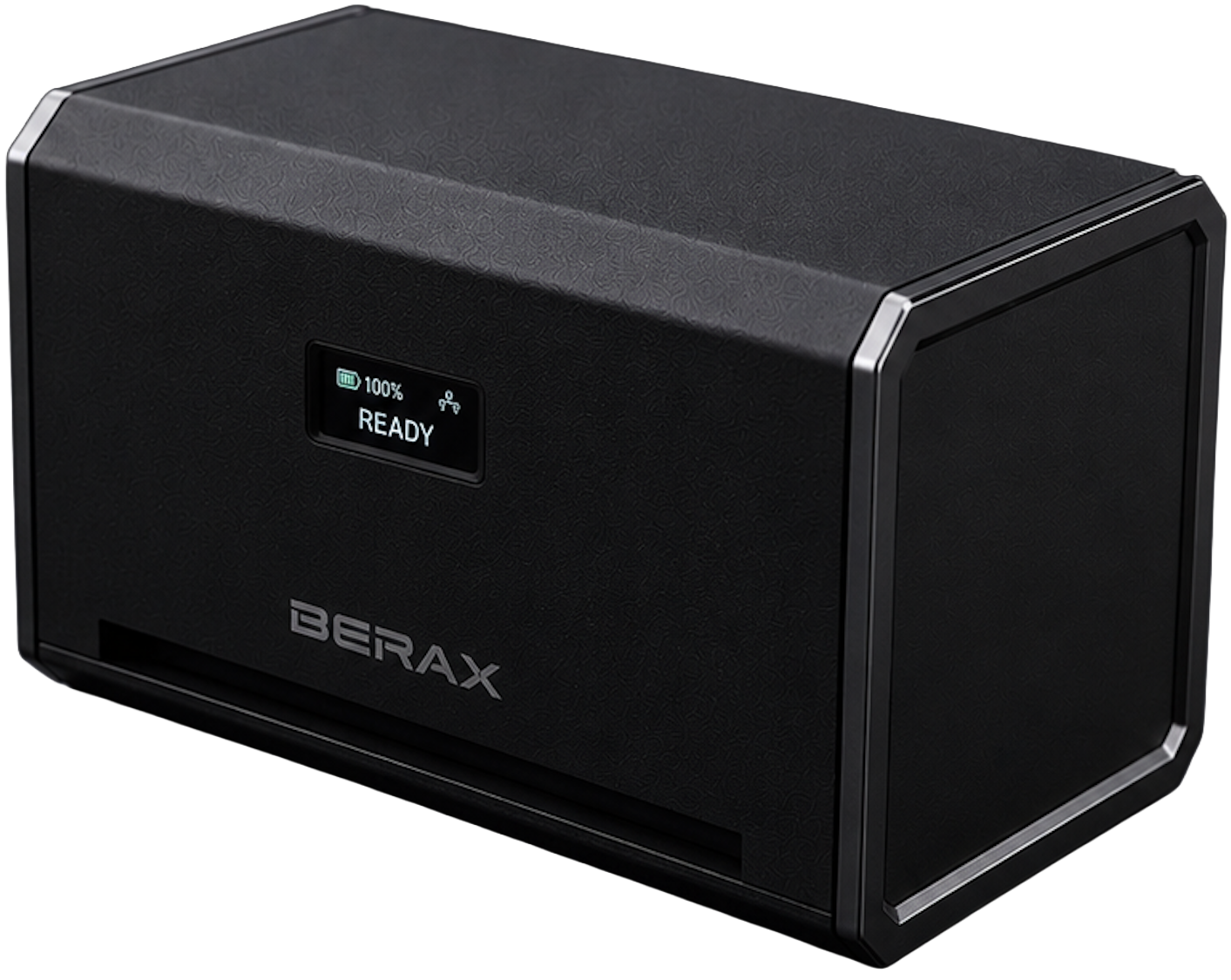

BERAX · INSPECTIONBERAX ultra-high-resolution portable CR system
Console Software

Read It on Site,
Decide on Site

BERAX ships with ViewRay, an interpretation console built for EOD work. Acquisition, explosive-threat detection, dual-energy material discrimination and stitching all run on the operator's machine — no cloud round trip, no second workstation. Decisions are made where the object is.

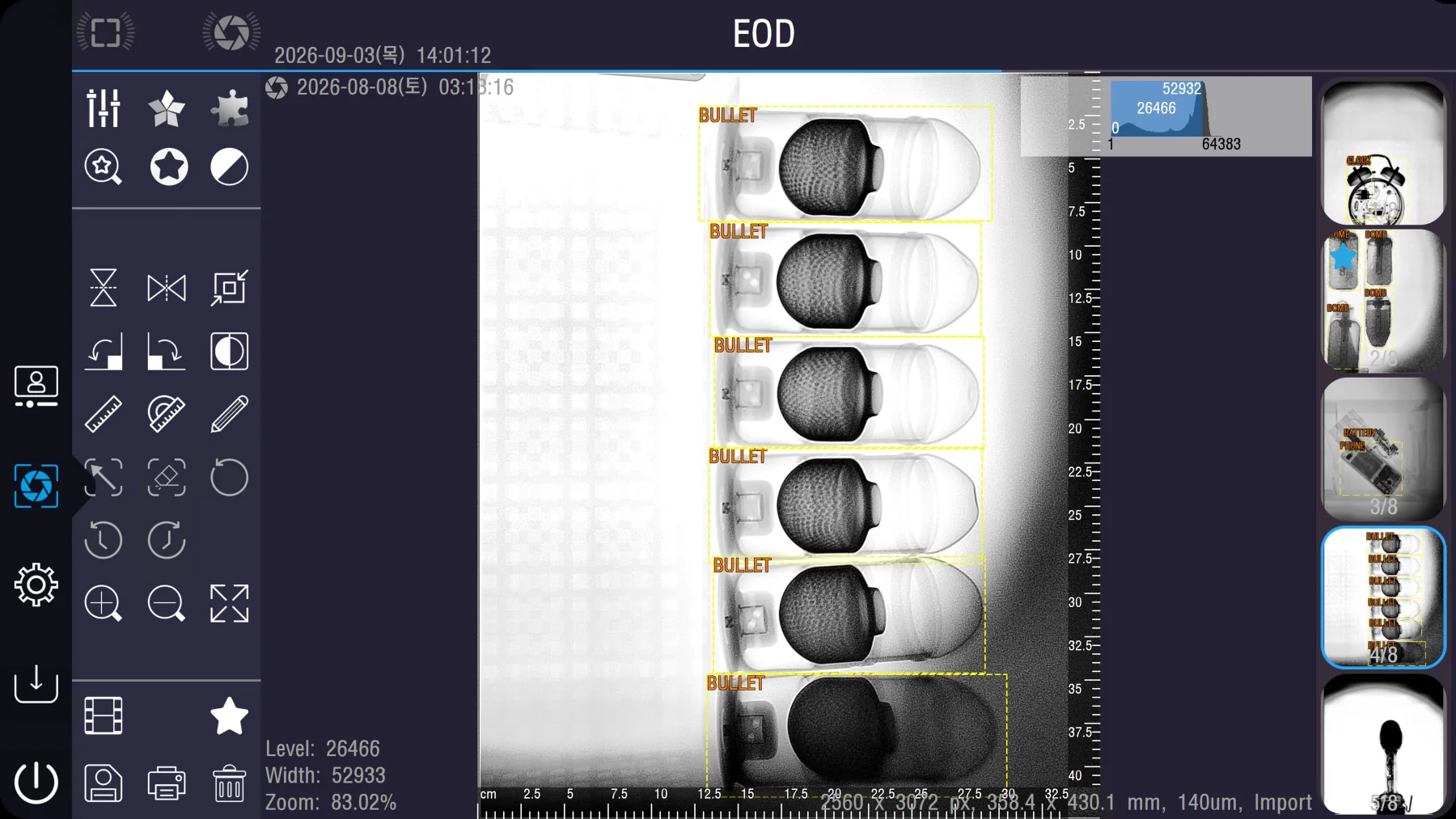

EOD · THREAT DETECTION ViewRay interpretation screen — candidate threats marked on the radiographic image, with the other exposures of the same inspection listed alongside
Candidate threats marked directly on the image. The column beside it holds the other exposures from the same inspection.
  • Explosive-threat detection AI marks candidate elements — charges, detonators, initiating devices — directly on the image, so the operator's eye goes to the right place first. The call stays with the person: the console assists interpretation, it does not decide
  • GPU-accelerated inference — roughly 0.25 seconds per image, about ten times faster than the previous engine
  • Auto stitching — when the subject is larger than the detector, shoot it in sections and the console joins them into a single image with a guide grid
  • Dual-energy discrimination for explosives — imaging at two energy levels separates organic from inorganic matter, revealing an explosive charge packed among metal parts, which shape alone cannot distinguish. Rendered as a three-material colour map with thresholds set automatically; analysis works from two exposures alone when no flat images are available
  • Multi-processing — several detectors connect at once, and acquisition, AI interpretation and device communication each run independently so one never blocks another. Multi-view places several images side by side
  • A full interpretation toolset — window level/width, contrast and edge enhancement, zoom, rotate, flip, crop, length and angle measurement, annotations, undo/redo
  • Location recorded automatically — GPS coordinates arrive from the DR controller itself and are stored with every exposure, on both the inspection and the image record. Nothing is typed in, so nothing is missed in the field. The format can be set to decimal degrees, degrees-decimal-minutes or degrees-minutes-seconds
  • Field record keeping — job worklist, account sign-in, and export of the interpreted image and report
  • Detector driver plug-ins — support for a new detector arrives as a driver module, without replacing the console itself
  • Wi-Fi · Ethernet · USB connection, with battery, charging and adapter state shown at a glance
Specifications
Console Software
ViewRay (included)
Detection
Explosive-threat detection AI
Inference Time
Approx. 0.25 sec / image (GPU accelerated)
Dual Energy
Organic / inorganic separation for explosives · three-material colour map · auto thresholds
Stitching
Automatic composition of sectioned exposures
Concurrency
Multiple detectors at once · acquisition / interpretation / communication run independently
Measurement
Length · angle · pixel-spacing correction
Records
GPS from the DR controller, stored per exposure · worklist · image and report export
Connectivity
Wi-Fi · Ethernet · USB
Detector Support
Driver plug-in — new detectors without replacing the console
